Providing artificial nesting cavities—commonly known as birdhouses or nest boxes—is one of the most effective ways to support native bird populations in the United States. However, a generic “one-size-fits-all” birdhouse does not exist. In nature, cavity-nesting birds select old woodpecker holes or hollow tree trunks that match their exact body size, entry requirements, and defensive needs.
If a nest box features an entrance hole that is even a quarter-inch too large, aggressive invasive species like European Starlings or House Sparrows will colonize the box and displace native songbirds. To attract specific species to your property, you must build or buy your nest boxes according to precise, scientifically verified dimensions.
Universal Nest Box Engineering Standards
Before looking at species-specific blueprinted dimensions, every high-quality nest box design must incorporate these non-negotiable structural features to ensure the safety and survival of eggs and nestlings:
- Untreated Lumber Only: Use naturally rot-resistant wood like western red cedar, redwood, or cypress. Never use pressure-treated lumber, plywood, or oriented strand board (OSB), as these materials leach toxic chemical preservatives and glues when exposed to moisture and heat.
- Thick Walls: Use wood panels that are at least 3/4-inch thick. This provides vital insulation, keeping eggs cool during hot summer days and warm during sudden spring cold snaps.
- Zero Perches: Never install a perch outside the entrance hole. Native cavity nesters have strong feet and easily cling to bare wood. Perches are unnatural and serve only as convenient handholds for predators like raccoons, house cats, and Blue Jays attempting to reach inside to steal eggs.
- Drainage and Ventilation: Drill at least four 1/4-inch drainage holes in the floor panel to let rain or waste moisture escape. Leave a 1/4-inch ventilation gap between the top of the side walls and the roof line to allow trapped summer heat to vent out.
- Interior Fledgling Ladder: The interior front wall directly below the entrance hole must be rough. Use a saw to score shallow horizontal grooves into the wood. This gives developing fledglings a secure grip so they can climb out of the box when they are ready to fly.
Nest Box Dimension Blueprints by Species
The table below outlines the exact dimensional blueprints required by the most common cavity-nesting bird species in the United States.
| Target Species | Entrance Hole Diameter | Floor Matrix (Inside) | Box Depth (Interior) | Hole Above Floor | Mounting Height | Preferred Habitat Zone |
| Eastern Bluebird | 1.50 inches | 5 x 5 inches | 8 to 10 inches | 6 inches | 4 to 6 feet | Wide-open lawns, pastures, orchards |
| Western / Mountain Bluebird | 1.56 inches (1 9/16″) | 5 x 5 inches | 8 to 10 inches | 6 inches | 4 to 6 feet | Open woodlands, sagebrush, rangeland |
| Carolina / Black-capped Chickadee | 1.125 inches (1 1/8″) | 4 x 4 inches | 8 to 10 inches | 6 to 8 inches | 5 to 15 feet | Forest edges, suburban yards with canopy |
| Tufted Titmouse | 1.25 inches (1 1/4″) | 4 x 4 inches | 8 to 10 inches | 6 to 8 inches | 5 to 15 feet | Mature deciduous woods, suburban yards |
| White-breasted Nuthatch | 1.25 inches (1 1/4″) | 4 x 4 inches | 8 to 10 inches | 6 to 8 inches | 12 to 20 feet | High up on mature tree trunks in woods |
| House Wren | 1.125 inches (1 1/8″) | 4 x 4 inches | 6 to 8 inches | 4 to 6 inches | 4 to 10 feet | Brushy thickets, garden edges, shrub lines |
| Tree Swallow | 1.50 inches | 5 x 5 inches | 6 to 8 inches | 4 to 6 inches | 5 to 6 feet | Open fields near lakes, ponds, marshes |
| Downy Woodpecker | 1.25 inches (1 1/4″) | 4 x 4 inches | 8 to 10 inches | 6 to 8 inches | 5 to 15 feet | Woodlots, riparian zones, orchard edges |
| American Kestrel | 3.00 inches | 8 x 8 inches | 12 to 15 inches | 9 to 12 inches | 10 to 30 feet | Expansive agricultural pastures, prairies |
| Screech-Owl (Eastern/Western) | 3.00 inches | 8 x 8 inches | 12 to 15 inches | 9 to 12 inches | 10 to 30 feet | Dense mature trees, backyard forest plots |
| Wood Duck | 4.00 x 3.00 inches (Oval) | 10 x 10 inches | 15 to 24 inches | 12 to 16 inches | 4 to 20 feet | Mounted over or directly adjacent to water |
Detailed Species Construction Nuances
While the raw dimensions provide the baseline foundation, specific bird families require minor structural modifications to achieve successful colonization and safety.
1. The Small Songbird Group (Chickadees, Titmice, and Wrens)
Chickadees and titmice are sensitive to wide-open internal spaces. If a box is too large, they waste critical energy packing the entire bottom with moss before building their actual nest cup.
- The Chickadee Substrate Rule: Chickadees are accustomed to excavating soft, rotted wood. To attract them, pack the interior of a clean, empty box with a 2-inch layer of clean wood shavings (not fine sawdust) and press it down firmly. The birds will eagerly excavate the shavings, mimicking their natural instinct, which signals to them that the site is secure.

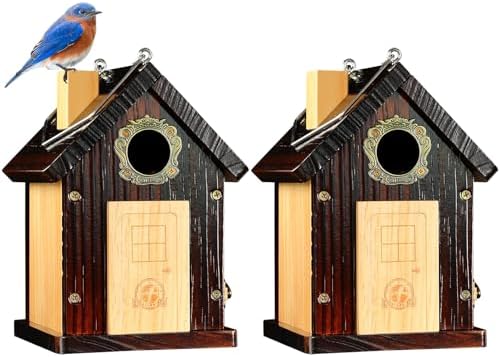

2. The Bluebird Guild (Eastern, Western, and Mountain Bluebirds)
Bluebirds are highly target-sensitive. Because they are primary targets for aggressive House Sparrows, maintaining exact entry dimensions is vital.
- The Round Hole Boundary: An Eastern Bluebird requires exactly a 1.50-inch round hole. If the hole wears down or is chewed wider by squirrels to 1.625 inches, starlings will slip inside, kill the adult bluebirds, and destroy the clutch. Install a metal or hard-rock maple predator guard protector ring over the entrance hole to maintain the exact structural diameter.
3. The Large Cavity Predators (Kestrels and Screech-Owls)
American Kestrels and Screech-Owls require the exact same structural box dimensions, and their boxes can be used interchangeably depending on local habitat pressure.
- No Nesting Material Instinct: Neither owls nor falcons carry sticks, moss, or grass to construct nests. They lay their eggs directly on the bare floor of a cavity. Therefore, you must add a 2- to 3-inch layer of clean wood shavings to the bottom of these large boxes before mounting them. Without this artificial substrate layer, eggs will roll around on the flat wood floor, crack, or fail to incubate properly.

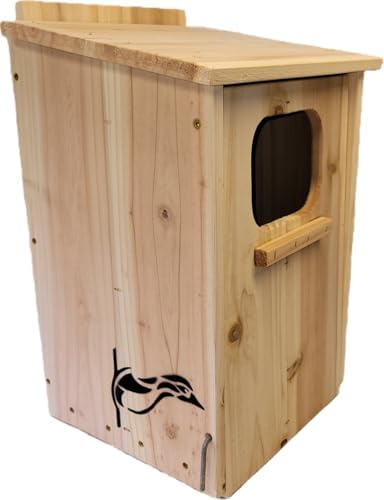

4. The Wood Duck Specialist
Wood Duck boxes are massive structures that require specialized security features due to their close proximity to water, which attracts specialized climbing predators.
- The Mesh Fledgling Ladder: Because a Wood Duck box is deep (up to 24 inches), newly hatched ducklings cannot reach the high exit hole via simple wood scoring. You must staple a wide strip of hardware cloth mesh inside the front panel extending from the floor directly to the bottom lip of the entrance hole. The ducklings will use their sharp claws to scale this wire ladder hours after hatching to jump out of the box.
Predator Deterrence and Mounting Systems
Where and how you install your completed nest box dictates its safety profile. Never nail a birdhouse directly to a tree trunk or a wooden fence post without protection. Climbing predators—such as raccoons, rats, gray squirrels, and black rat snakes—can easily climb bare bark and wood to raid active boxes.
The Metal Pole Isolation Protocol
The safest way to mount any songbird nest box is on an isolated, smooth metal pole:
- Use a 1-inch diameter galvanized steel electrical conduit pipe (EMT) or a heavy-duty t-post.
- Install a Kingston-style Baffle: Mount a smooth, 24-inch metal cylinder or a wide stovepipe baffle directly onto the pole beneath the bottom of the nest box. The top of the baffle should sit at least 4 feet off the ground. This creates a slick, physical barrier that climbing mammals and snakes cannot scale or bypass.
Directional Orientation
Position the entrance hole of your nest box to face East or Southeast. This alignment does two things: it protects the delicate interior from prevailing rainstorms and harsh winds, which typically move from west to east across the US, and it allows the early morning spring sun to warm the box, stimulating parental activity.
